    Omega Series™ 304 Stainless Steel Flame Retardant, Halogen Free
    Omega Series™ 304 Stainless Steel Flame Retardant, Halogen Free
    Description

    The Omega Series™ 304 stainless steel, flame retardant, and halogen free clamp assembly retains, guides, protects and uniformly spaces line runs. Attached with two standard fasteners to any flat surface, the Omega Series™ clamp eliminates the use of special channels, providing a savings in both space and cost. They go up fast, lines are rigid and look neat.

    Features

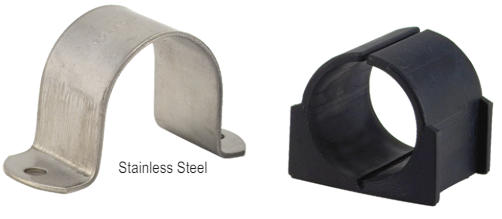

    • THE CLAMP - Steel with stainless steel type 304.
    • THE CUSHION - Manufactured from a thermoplastic elastomer, it's built tough to withstand the effects of most oils, chemicals and industrial compounds, Interlock edges ensures that the cushion remains in place.
    • Standard Temperature: -50° F to 275° F (-45° C to 135° C)

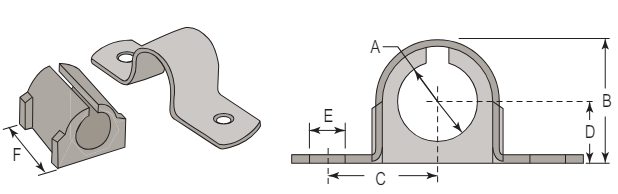

    Dimensional Image
    PART#
    "A"
    "B"
    "C"
    "D"
    "E"
    "F"
    Copper Pipe Size
    Pipe Size Nom.
    Tube Size
    QTY
    PRICE
    004MS007NH
    0.25" (6mm)
    0.48" (12mm)
    0.60" (15mm)
    0.22" (6mm)
    .26" (7mm)
    0.78"(20mm)
    -
    -
    1/4"
    No
    $10.30
    006MS008NH
    0.37" (9mm)
    0.62" (16mm)
    0.66" (17mm)
    0.31" (8mm)
    .26" (7mm)
    0.81"(21mm)
    1/4"
    -
    3/8"
    No
    $10.30
    008MS011NH
    0.50" (13mm)
    0.81" (21mm)
    0.83" (21mm)
    0.40" (10mm)
    .26" (7mm)
    0.98"(25mm)
    3/8"
    1/4"
    1/2"
    No
    $10.30
    010MS013NH
    0.62" (16mm)
    0.93" (24mm)
    0.85" (22mm)
    0.46" (12mm)
    .26" (7mm)
    0.98"(25mm)
    1/2"
    3/8"
    5/8"
    No
    $10.40
    012MS015NH
    0.75" (19mm)
    1.02" (26mm)
    0.90" (23mm)
    0.50" (13mm)
    .26" (7mm)
    0.98"(25mm)
    5/8"
    -
    3/4"
    No
    $11.90
    014MS017NH
    0.87" (22mm)
    1.12" (28mm)
    1.03" (26mm)
    0.53" (13mm)
    .26" (7mm)
    0.98"(25mm)
    3/4"
    1/2"
    7/8"
    No
    $12.50
    016MS019NH
    1.00" (25mm)
    1.24" (31mm)
    1.04" (26mm)
    0.59" (15mm)
    .26" (7mm)
    0.98"(25mm)
    -
    -
    1"
    No
    $13.70
    018MS020NH
    1.05" (27mm)
    1.40" (36mm)
    1.11" (28mm)
    0.70" (18mm)
    .26" (7mm)
    0.98"(25mm)
    -
    3/4"
    -
    No
    $15.20
    018MS021NH
    1.12" (28mm)
    1.40" (36mm)
    1.17" (30mm)
    0.70" (18mm)
    .26" (7mm)
    0.98"(25mm)
    1"
    -
    1-1/8"
    No
    $15.20
    020MS024NH
    1.25" (32mm)
    1.60" (41mm)
    1.20" (30mm)
    0.77" (20mm)
    .26" (7mm)
    1.56" (40mm)
    -
    -
    1-1/4"
    No
    $17.20
    024MS028NH
    1.50" (38mm)
    1.85" (47mm)
    1.36" (35mm)
    0.90" (23mm)
    .26" (7mm)
    1.56" (40mm)
    -
    -
    1-1/2"
    No
    $18.60
    028MS032NH
    1.75 (44mm)
    2.12 (54mm)
    1.55 (39mm)
    1.02 (26mm)
    0.34" (9mm)
    1.56" (40mm)
    -
    -
    1 3/4"
    No
    $24.40
    038MS044NH
    2.37" (60mm)
    2.88" (73mm)
    1.94" (49mm)
    1.41" (36mm)
    0.34" (9mm)
    1.56" (40mm)
    -
    2"
    2-3/8"
    No
    $46.40
