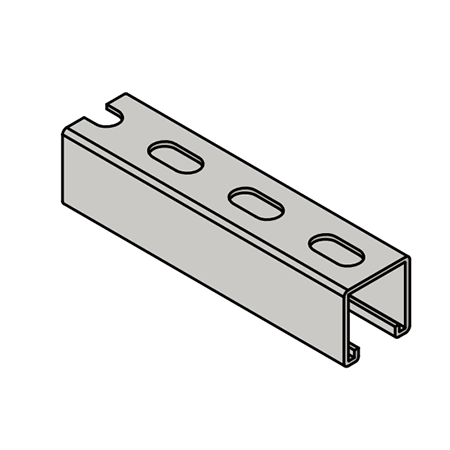

W200EH Channel w/Short Slots 12 Gauge 1-5/8" x 1-5/8"
Description
W200SS 12 gauge channel strut with short slots is available in a wide variety of finishes including pre-galvanized (PG), hot dipped galvanized (HG), and paint-green powder coating (GR). See Specifications tab below for a full list of available finishes, channel materials and more.
- Strut: 1 5⁄8" (41mm) width x 1 5⁄8" (41mm) height
- Short Slots: 9⁄16" (14mm) x 1-1⁄8" (29mm) on 2" (51mm) centers*
- Produced in 10 and 20 foot (3m and 6m) lengths
- Length tolerance plus or minus 1⁄16"
Versabar: VA1PLH
Florida Strut: FS12158EH
*Additional hole patterns and custom lengths available on request, contact us for more information.
Features
- Channels are manufactured by the cold roll forming process which produces cross sections of uniform dimensions within tolerances established by the Metal Framing Manufacturer's Association, Metal Framing Standards Publication No. MFMA-4.
- Steel used in the manufacture of channels conforms to the ASTM specifications under the Specifications tab below.
- Design is based on AISI S100-2016 "Specification for the Design of Cold-Formed Steel Structural Members." Maximum bending stress used in design is 25,000 pounds per square inch (PSI). This is based upon a virgin steel minimum yield stress of 33,000 psi cold worked to an average yield stress of 42,000 psi.
- Welds meet the performance requirements of section 4 of AISI S100-2016 "Specification for the design of Cold-Formed Steel Structural Members." All multiple sections of two or more single channels are resistance spot-welded approximately 2" to 3" (51mm to 76mm) on center.

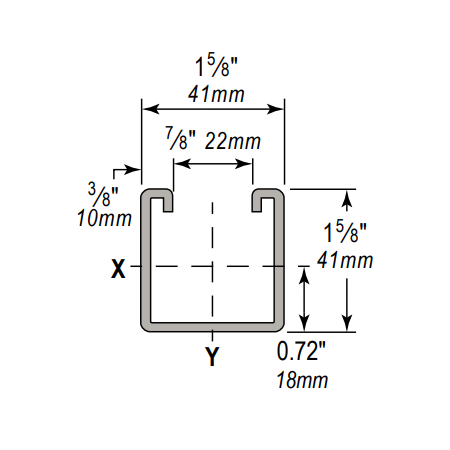

Dimensional Image
|
|
Specifications
| Channel Material Specifications | |||
|---|---|---|---|
| Material | Material Code | Current ASTM Designation | ASTM Description |
| Hot Rolled: Channel | Use Finish Code* | A 1011SS GR33 | Hot rolled carbon steel sheet and strip, structural quality. |
| Cold Rolled: Channel | A 1008SS GR33, A 1008 | Cold rolled carbon sheet steel. | |
| Pregalvanized: Channel | A 653 SS GR33 | Steel sheet zinc-coated by hot dip process at mill, structural quality. | |
| Stainless Steel: Channel | ST304 | A 240 TYPE 304 | Heat resisting chromium and chromium-nickel stainless steel plate, sheet, strip for pressure vessel. |
| ST316 | A 240 TYPE 316 | ||
| Aluminum: Channel | AL | B 221 TYPE 6063 T6 | Aluminum alloy extruded bar, rod, wire, shape, and tube |
| Channel Finish Specifications | ||
|---|---|---|
| Finish | *Finish Code | Description |
| Paint-Green Powder Coating | GR | A dark green low gloss powder coating is applied and thoroughly baked after steel has been cleaned and phosphatized. |
| Electroplated | EG | Fittings and hardware supplied as "Electro-Galvanized" in accordance with ASTM B 633. |
| Mill-Galvanized (Pre-Galvanized) | PG | Galvanized steel used in the manufacture of channel sections conforms to ASTM A 653 GR33 G90. Uncoated edges resulted from slitting, punching and channel cut off are present. |
| Hot Dip Galvanized After Fabrication | HG | Channel and fittings which are hot dip galvanized after fabrication conform to one of the following specifications. ASTM A 123, ASTM A153 or ASTM A386. |
| Special Coatings | PL, GOLD | Other commercially available finishes can be supplied per specification when required to protect applications. |
Allowable Beam Loads
1-5⁄8" x 1-5⁄8" (41mm x 41mm) 12 Gauge Channel
Channel with Long Slots . . . . . . . . . . . . . . . . . 0.90
Channel with Holes . . . . . . . . . . . . . . . . . . . . . 0.95
Knock-Out Channel. . . . . . . . . . . . . . . . . . . . . . 0.95
| Span In (mm) |
Max. Uniform Load (W) Lbs (kN) |
Deflection at Load (W) In (mm) |
Uniform Load at Deflection Span /240 Lbs (kN) |
Lateral Bracing Load Reduction Rate |
|---|---|---|---|---|
| 12 (305) | 3,480 (15.5) | 0.01 (0.25) | 3,480 (15.5) | 1.00 |
| 24 (610) | 1,740 (7.7) | 0.06 (1.52) | 1,740 (7.7) | 1.00 |
| 36 (914) | 1,160 (5.2) | 0.13 (3.30) | 1,160 (5.2) | 0.93 |
| 48 (1,219) | 870 (3.9) | 0.23 (5.84) | 770 (3.4) | 0.87 |
| 60 (1,524) | 700 (3.1) | 0.35 (8.89) | 490 (2.2) | 0.82 |
| 72 (1,829) | 580 (2.6) | 0.51 (12.95) | 340 (1.5) | 0.77 |
| 84 (2,134) | 500 (2.2) | 0.7 (17.78) | 250 (1.1) | 0.74 |
| 96 (2,438) | 430 (1.9) | 0.89 (22.61) | 190 (0.8) | 0.70 |
| 108 (2,743) | 390 (1.7) | 1.15 (29.21) | 150 (0.7) | 0.67 |
| 120 (3,048) | 350 (1.6) | 1.42 (36.07) | 120 (0.5) | 0.65 |
** KL ⁄ r > 200
NR = Not Recommended
Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
Beam Loading of Punched Channels
Load for punched channel is obtained by multiplying the loads shown by the following reduction factors:
Channel with Short Slots. . . . . . . . . . . . . . . . . 0.90Channel with Long Slots . . . . . . . . . . . . . . . . . 0.90
Channel with Holes . . . . . . . . . . . . . . . . . . . . . 0.95
Knock-Out Channel. . . . . . . . . . . . . . . . . . . . . . 0.95
Allowable Column Loads
1-5⁄8" x 1-5⁄8" (41mm x 41mm) 12 Gauge Channel
Channel with Long Slots . . . . . . . . . . . . . . . . . 0.90
Channel with Holes . . . . . . . . . . . . . . . . . . . . . 0.95
Knock-Out Channel. . . . . . . . . . . . . . . . . . . . . . 0.95
| Unbraced Height In (mm) |
Max. Slot Face Load Lbs (kN) |
Max. Column Load Applied at C.G. K = 1.0 Lbs (kN) |
|---|---|---|
| 12 (305) | 3,110 (13.8) | 8,660 (38.5) |
| 24 (610) | 2,880 (12.8) | 6,360 (28.3) |
| 36 (914) | 2,460 (10.9) | 4,190 (18.6) |
| 48 (1,219) | 1,980 (8.8) | 2,760 (12.3) |
| 60 (1,524) | 1,570 (7.0) | 2,050 (9.1) |
| 72 (1,829) | 1,300 (5.8) | 1,640 (7.3) |
| 84 (2,134) | 1,100 (4.9) | 1,370 (6.1) |
| 96 (2,438) | 950 (4.2) | 1,170 (5.2) |
| 108 (2,743) | 840 (3.7) | 1,030 (4.6) |
| 120 (3,048) | 750 (3.3) | ** |
** KL ⁄ r > 200
NR = Not Recommended
Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced.
Beam Loading of Punched Channels
Load for punched channel is obtained by multiplying the loads shown by the following reduction factors:
Channel with Short Slots. . . . . . . . . . . . . . . . . 0.90Channel with Long Slots . . . . . . . . . . . . . . . . . 0.90
Channel with Holes . . . . . . . . . . . . . . . . . . . . . 0.95
Knock-Out Channel. . . . . . . . . . . . . . . . . . . . . . 0.95
Section Properties
| Wt./Ft. Lbs. (Kg/M) |
Area of Section Sq. in. (Sq. cm) |
X-X Axis | Y-Y Axis | ||||
|---|---|---|---|---|---|---|---|
| Ix in.4 (Ix cm4) |
Sx in.3 (Sx cm3) |
rx. in. (rx. cm) |
Iy in.4 (Iy cm4) |
Sy in.3 (Sy cm3) |
ry in. (ry cm) |
||
| 15⁄8" x 15⁄8" (41mm x 41mm) 12 Gauge Channel | |||||||
| 1.91 (2.84) | 0.561 (3.62) | 0.188 (7.83) | 0.207 (3.39) | 0.579 (1.47) | 0.238 (9.91) | 0.293 (4.80) | 0.652 (1.66) |
