W300EH Channel w/Short Slots 12 Gauge 1-5/8" x 1-3/8"
Description
W300SS - 12 Gauge Channel 1 5⁄8" x 1 3⁄8" (41mm x 35mm) with 9⁄16" x 1 1⁄8" Short Slots punched on 2" centers
- Available in 10' & 20' lengths
- Finishes: PG, HG, GR, PL, Gold, EA, ST304, & ST316
Features

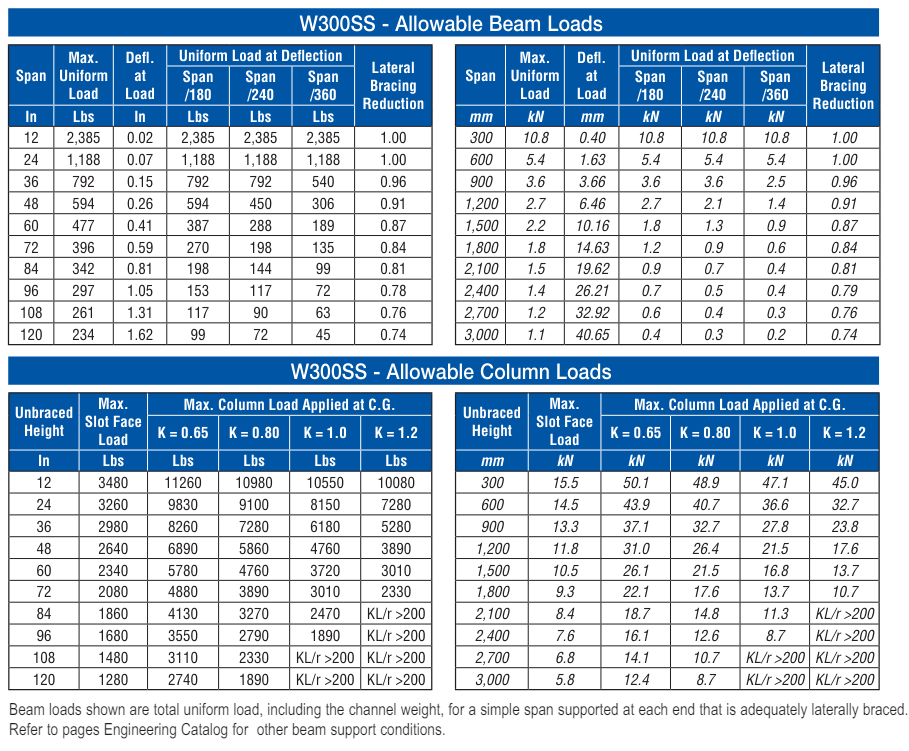

Beam loads shown are total uniform load, including the channel weight, for a simple span supported at each end that is adequately laterally braced. Refer to pages Engineering Catalog for other beam support conditions.

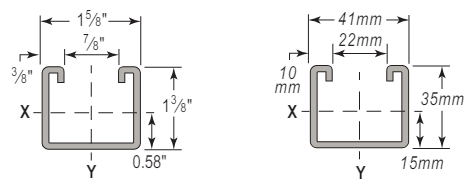

Dimensional Image
Specifications
