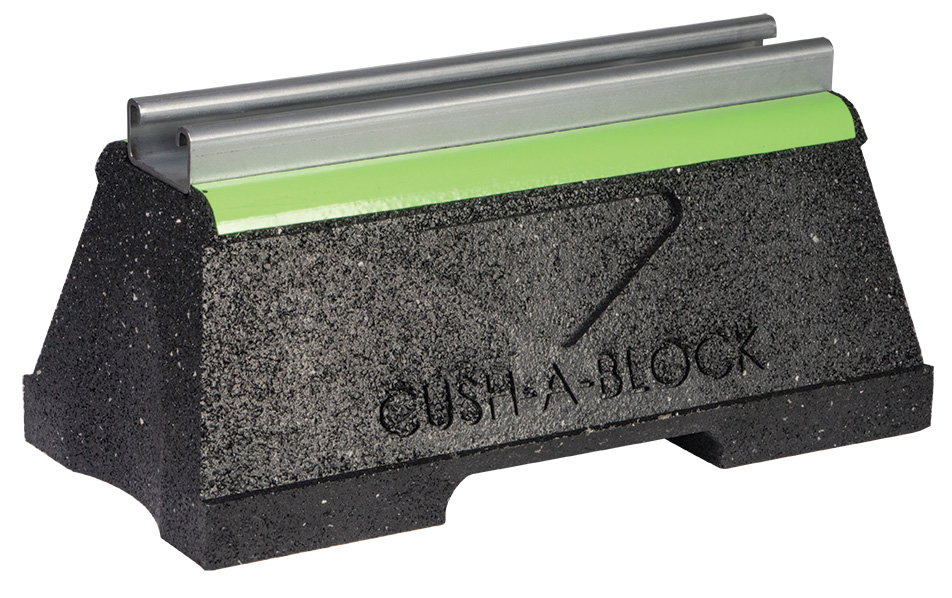

    Cush-A-Block® CBN Series - Support with Metal Channel
    Cush-A-Block® CBN Series - Support with Metal Channel
    Description

    The Cush-A-Block® rooftop support CBN Series provides a longer mounting surface with strut lengths up to 46.82" (1.2m). The Cush-A-Block® rooftop support systems are 75% faster for strut installation and change-out. Applications include solar racking, pipe & conduit, HVAC, and rooftop walkways.

    The channel for Cush-A-Block support assemblies includes a variety of options. The strut can be made in special lengths*, finishes**, and alloys including Aluminum, Stainless Steel both 304 & 316, PVC coated, Powder coated, Zinc Trivalent Chromium, Pre-Galvanized (PG) and Hot Dipped Galvanized (HG).

    *Custom lengths are available upon request.
    **Standard Finish: Pre-galvanized (PG) or Hot Dipped Galvanized (HG).
    Features
    75% Faster Strut Install and Change-Out
    Built-in Channel Guide Embedded Fasteners
    Straight Strut Installation No Rust on the Roof
    Easy-carry Hand Grip Water Flow-through
    Simple to Lift and Carry Helps Prevent Mold and Ice Dams
    • 100% Recycled Rubber Qualifies for LEED Credits
    • Meets the Buy America Act and American Reinvestment Recovery Act
    • Resistant to Freeze and Thaw
    • Dampens Vibrations
    • Compatible with Most Rooftop Materials
    • Eco-Green Reflective Safety Strip Won't Peel or Flake
    Embedded nut eliminates any thru holes and prevents leaks or any rust from forming on the underside of the fastener.

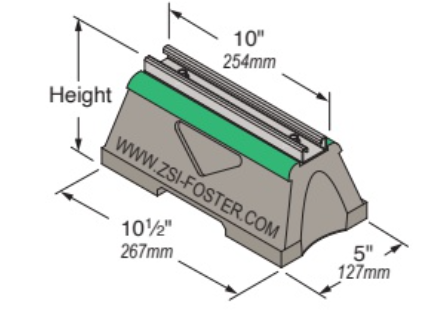

    Dimensional Image
    PART#
    Height
    Number of Bases
    Width
    QTY
    PRICE
    CBN1S-PG
    4-13⁄16" (122mm)
    1
    5" (127mm)
    No
    $43.00
    CBN2S-PG
    4-13⁄16" (122mm)
    2
    5" (127mm)
    No
    $81.20
    CBN3S-PG
    4-13⁄16" (122mm)
    3
    5" (127mm)
    No
    $118.60
    CBN4S-PG
    4-13⁄16" (122mm)
    4
    5" (127mm)
    No
    $156.20
    CBN1S-HG
    4-13⁄16" (122mm)
    1
    5" (127mm)
    No
    $45.00
    CBN2D-PG
    5-5 ⁄ 8" (143mm)
    2
    5" (127mm)
    No
    $85.60
    CBN3D-PG
    5-5 ⁄ 8" (143mm)
    3
    5" (127mm)
    No
    $125.90
    CBN4D-PG
    5-5 ⁄ 8" (143mm)
    4
    5" (127mm)
    No
    $165.90
    CBN1D-HG
    5-5 ⁄ 8" (143mm)
    1
    5" (127mm)
    No
    $48.20
    CBN2D-HG
    5-5 ⁄ 8" (143mm)
    2
    5" (127mm)
    No
    $93.30
    CBN3D-HG
    5-5 ⁄ 8" (143mm)
    3
    5" (127mm)
    No
    $137.40
    CBN1RD-PG
    6-7 ⁄16" (164mm)
    1
    5" (127mm)
    No
    $46.70
    CBN2RD-PG
    6-7 ⁄16" (164mm)
    2
    5" (127mm)
    No
    $89.60
    CBN4RD-PG
    6-7 ⁄16" (164mm)
    4
    5" (127mm)
    No
    $173.60
    CBN1D-PG
    5-5 ⁄ 8" (143mm)
    1
    5" (127mm)
    No
    $45.20
    GRAND TOTAL: $0
    PART#
    QTY
    PRICE
    CBN1S-PG
    No
    $43.00
    CBN2S-PG
    No
    $81.20
    CBN3S-PG
    No
    $118.60
    CBN4S-PG
    No
    $156.20
    CBN1S-HG
    No
    $45.00
    CBN2D-PG
    No
    $85.60
    CBN3D-PG
    No
    $125.90
    CBN4D-PG
    No
    $165.90
    CBN1D-HG
    No
    $48.20
    CBN2D-HG
    No
    $93.30
    CBN3D-HG
    No
    $137.40
    CBN1RD-PG
    No
    $46.70
    CBN2RD-PG
    No
    $89.60
    CBN4RD-PG
    No
    $173.60
    CBN1D-PG
    No
    $45.20
