    CUSH-A-CLAMP® 304 Stainless Steel
    CUSH-A-CLAMP® 304 Stainless Steel
    Description

    CUSH-A-CLAMP® 304 stainless steel channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise and preventing galvanic corrosion. Cush-A-Clamp fits any standard 1-5/8 wide channel. Assembly consisting of steel clamp with locknut and thermoplastic elastomer cushion. All parts are marked for easy identification and packaged for small lot or bulk use. When specified, Cush-A-Clamp assemblies up to 2, are available individually packaged.

    THE CLAMP* - Features a unique shoulder stud which is securely fastened to one clamp half. Steel clamps for tube sizes up to 1-38 have the Controlled Squeeze design which eliminates over- tightening and rotation while a nylon-insert nut assures a positive lock. Clamps are available in steel (with electro-dichromate finish), stainless steel type 304, and gold electro-galvanized steel (contact factory for type 316).

    THE CUSHION - Made from a thermoplastic elastomer, its built tough to withstand the effects of most oils, chemicals and industrial cleaning compounds, in temperatures from -50F to 275F. Interlock edges and channel locator legs ensure that the cushion remains in place.

    *Tube Size / O.D. is Cushion I.D. Design load deflection data available on request.
    Features
    • The 'Living Hinge" allows the cushion to be spread apart for quick, easy installation

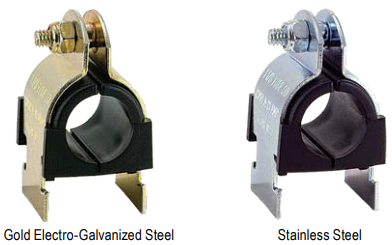

    • Also available in 'Gold Electro-Galvanized Steel' with electro-dichromate finish
    • 'Controlled Squeeze' design eliminates over-tightening and over-rotation which avoids damaging the pipe that is being installed
    • Individually packaged

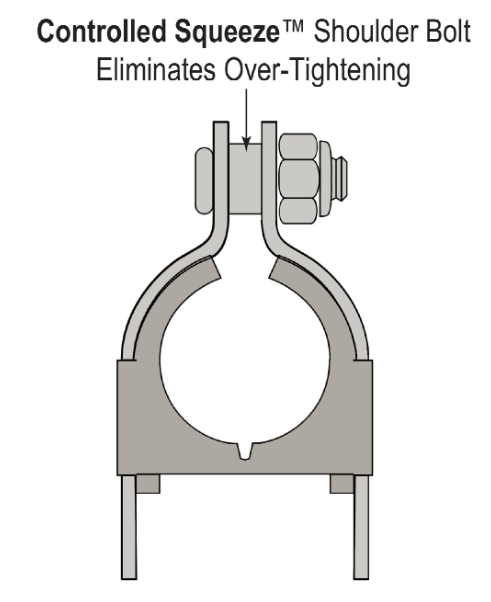

    controlled squeeze illustration
    Controlled Squeeze as shown in the drawing is included on smaller sizes of Cush-A-Clamp with "T" in the part number (e.g. 010T014).
    Loading Values Mounted in Standard 12 Gauge Channel
    Nut Torque
    (in-lbs)    		 Products Pullout
    (lbs)    		 Slip (lbs)
    Along Through
    1⁄4" 40 (4.5 N•m) 004T008 - 022T026 1,000 (4.5 kN) 100 (0.4 kN) 100 (0.4 kN)
    5⁄16" 60 (6.8 N•m) 024T028 - 050N056 2,200 (9.8 kN) 200 (0.9 kN) 200 (0.9 kN)
    3⁄8" 150 (16.9 N•m) 053N050 - 138NS146 3,600 (16.0 kN) 600 (2.7 kN) 350 (1.6 kN)
    Loads are the same for Stainless Steel Clamps (Example 024NS028)
    Dimensional Image

    *Controlled Squeeze as shown in the drawing is included on smaller sizes of Cush-A-Clamp with "T" in the part number (e.g. 010T014).
    Installation

    One man, one tool time savings. Retrofits can be added without disassembly. The "Living Hinge" allows the cushion to be spread apart for quick, easy installation on sizes from 1/4" through 1-3/4" (6mm - 45mm).

    PART#
    "A"
    "B"
    "C"
    "D"
    Copper Pipe Size
    Pipe Size Nom.
    Tube Size
    QTY
    PRICE
    004NS008
    0.25" (6mm)
    0.62" (16mm)
    0.27" (7mm)
    0.98" (25mm)
    -
    -
    1/4"
    No
    $11.90
    006NS010
    0.37" (9mm)
    0.82" (21mm)
    0.33" (8mm)
    1.13" (29mm)
    1/4"
    -
    3/8"
    No
    $11.90
    008NS012
    0.50" (13mm)
    0.94" (24mm)
    0.40" (10mm)
    1.34" (34mm)
    3/8"
    -
    1/2"
    No
    $12.00
    009NS012
    0.54" (14mm)
    0.98" (25mm)
    0.43" (11mm)
    1.34" (34mm)
    -
    1/4"
    -
    No
    $12.30
    010NS014
    0.62" (16mm)
    1.06" (27mm)
    0.46" (12mm)
    1.54" (39mm)
    1/2"
    -
    5/8"
    No
    $12.60
    011NS014
    0.67" (17mm)
    1.13" (29mm)
    0.49" (12mm)
    1.54" (39mm)
    -
    3/8"
    -
    No
    $12.60
    012NS016
    0.75" (19mm)
    1.20" (30mm)
    0.52" (13mm)
    1.68" (43mm)
    5/8"
    -
    3/4"
    No
    $16.10
    014NS018
    0.84" (21mm)
    1.29" (33mm)
    0.58" (15mm)
    1.82" (46mm)
    -
    1/2"
    -
    No
    $17.60
    016NS020
    1.00" (25mm)
    1.44" (37mm)
    0.65" (17mm)
    1.95" (50mm)
    -
    -
    1"
    No
    $19.00
    017NS022
    1.05" (27mm)
    1.57" (40mm)
    0.70" (18mm)
    2.08" (53mm)
    -
    3/4"
    -
    No
    $21.10
    018NS022
    1.12" (28mm)
    1.57" (40mm)
    0.70" (18mm)
    2.08" (53mm)
    1"
    -
    1-1/8"
    No
    $21.10
    020NS024
    1.25" (32mm)
    1.70" (43mm)
    0.77" (20mm)
    2.21" (56mm)
    -
    -
    1-1/4"
    No
    $22.90
    021NS026
    1.31" (33mm)
    1.76" (45mm)
    0.81" (21mm)
    2.34" (59mm)
    -
    1"
    -
    No
    $24.70
    022NS026
    1.37" (35mm)
    1.82" (46mm)
    0.83" (21mm)
    2.34" (59mm)
    1-1/4"
    -
    1-3/8"
    No
    $25.40
    024NS028
    1.50" (38mm)
    1.95" (50mm)
    0.90" (23mm)
    2.47" (63mm)
    -
    -
    1-1/2"
    No
    $26.80
    026NS030
    1.62" (41mm)
    2.07" (53mm)
    0.96" (24mm)
    2.60" (66mm)
    1-1/2"
    -
    1-5/8"
    No
    $29.30
    027NS032
    1.66" (42mm)
    2.17" (55mm)
    0.99" (25mm)
    2.73" (69mm)
    -
    1-1/4"
    -
    No
    $28.60
    028NS032
    1.75" (44mm)
    2.2" (56mm)
    1.02" (26mm)
    2.73" (69mm)
    -
    -
    1-3/4"
    No
    $29.70
    030NS034
    1.90" (48mm)
    2.32" (59mm)
    1.09" (28mm)
    2.86" (73mm)
    -
    1-1/2"
    1-7/8"
    No
    $33.10
    032NS036
    2.00" (51mm)
    2.45" (62mm)
    1.15" (29mm)
    3.04" (77mm)
    -
    -
    2"
    No
    $36.30
    034NS040
    2.12" (54mm)
    2.57" (65mm)
    1.27" (32mm)
    3.23" (82mm)
    2"
    -
    2-1/8"
    No
    $37.40
    038NS042
    2.37" (60mm)
    2.82" (72mm)
    1.41" (36mm)
    3.67" (93mm)
    -
    -
    2-1/4"
    No
    $38.80
    038NS044
    2.37" (60mm)
    2.82" (72mm)
    1.41" (36mm)
    3.67" (93mm)
    -
    2"
    2-3/8"
    No
    $45.30
    040NS046
    2.50" (64mm)
    2.94" (75mm)
    1.46" (37mm)
    3.79" (96mm)
    -
    -
    2-1/2"
    No
    $52.90
    042NS048
    2.62" (67mm)
    3.07" (78mm)
    1.53" (39mm)
    3.92" (100mm)
    2-1/2"
    -
    2-5/8"
    No
    $53.50
    046NS052
    2.87" (73mm)
    3.32" (84mm)
    1.66" (42mm)
    4.17" (106mm)
    -
    2-1/2"
    2-7/8"
    No
    $53.60
    050NS054
    3.00" (76mm)
    3.57" (91mm)
    1.78" (45mm)
    4.42" (112mm)
    -
    -
    3"
    No
    $56.50
    050NS056
    3.12" (79mm)
    3.57" (91mm)
    1.78" (45mm)
    4.42" (112mm)
    3"
    -
    3-1/8"
    No
    $59.40
    053NS060
    3.31" (84mm)
    3.96" (101mm)
    1.90" (48mm)
    4.75" (121mm)
    -
    -
    3-5/16"
    No
    $62.10
    056NS062
    3.50" (89mm)
    3.95" (100mm)
    1.97" (50mm)
    4.79" (122mm)
    -
    3"
    3-1/2"
    No
    $62.20
    058NS064
    3.62" (92mm)
    4.20" (107mm)
    2.03" (52mm)
    5.11" (130mm)
    3-1/2"
    -
    3-5/8"
    No
    $75.60
    064NS072
    4.00" (102mm)
    4.45" (113mm)
    2.28" (58mm)
    5.11" (130mm)
    -
    3-1/2"
    4"
    No
    $75.90
    066NS074
    4.12" (105mm)
    4.57" (116mm)
    2.34" (59mm)
    5.54" (141mm)
    4"
    -
    4-1/8"
    No
    $100.50
    069NS076
    4.34" (110mm)
    4.96" (126mm)
    2.40" (61mm)
    5.84" (148mm)
    -
    -
    4-5/16"
    No
    $109.30
    072NS080
    4.50" (114mm)
    4.95" (126mm)
    2.53" (64mm)
    5.92" (150mm)
    -
    4"
    4-1/2"
    No
    $111.50
    082NS090
    5.12" (130mm)
    5.57" (141mm)
    2.84" (72mm)
    6.54" (166mm)
    5"
    -
    5-1/8"
    No
    $118.70
    089NS096
    5.56" (141mm)
    6.01" (153mm)
    3.06" (78mm)
    6.92" (176mm)
    -
    5"
    -
    No
    $135.10
    096NS106
    6.00" (152mm)
    6.57" (167mm)
    3.34" (85mm)
    7.54" (192mm)
    -
    -
    6"
    No
    $135.10
    098NS106
    6.12" (155mm)
    6.57" (167mm)
    3.34" (85mm)
    7.54" (192mm)
    6"
    -
    6-1/8"
    No
    $149.00
    106NS114
    6.62" (168mm)
    7.07" (180mm)
    3.59" (91mm)
    8.23" (209mm)
    -
    6"
    -
    No
    $171.20
